66 ft

Working Height

600 lbs

Platform Capacity

24,800 lbs

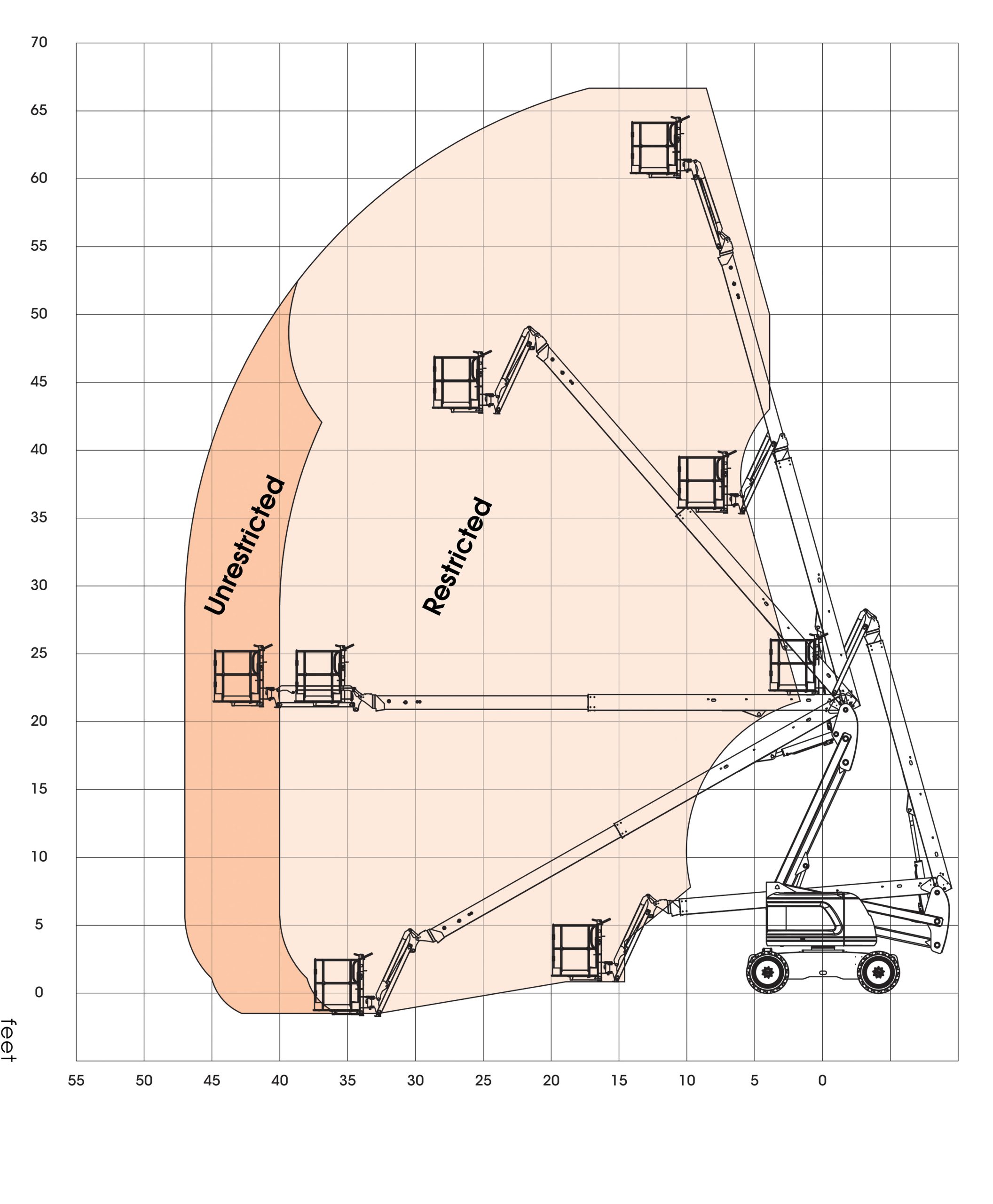

Offering outstanding reach and zero tailswing, the 600AJ is ideal for applications requiring up-and-over capabilities. A superb working envelope and jib arc eliminate the need to reposition the equipment to get to tight spots or accommodate awkward angles. Proportional controls provide intuitive ease of operation, while rough-terrain design and gradeability offer stability on uneven surfaces.

Max. working height
66 ft
Max. platform height
60 ft
Max. horizontal reach
44 ft
Clearance height at max. outreach
21 ft
Platform size
8 ft x 3 ft
Overall length
29 ft 2 in
Overall width
8 ft 1 in
Stowed height
8 ft 3 in
Ground clearance
13.5 in
Platform capacity (SWL)
600 lbs
Platform capacity – restricted
1,000 lbs
Max. drive height
60 ft
Max. wind speed
28 mph
Max. drive speed (elevated)
0.6 mph
Max. drive speed (stowed)
3.5 mph
Raise / lower time
60 / 60 seconds
Jib length
5 ft 6 in
Jib arc
Platform rotation
Superstructure rotation
360° continuous
0 in
54 in
Inside turning radius
10 ft 2 in
Outside turning radius
17 ft 1 in
Oscillating axle
8 in
355/55 D625 foam filled lug
Proportional drive, raise, slew, extend, jib and platform rotate
Drive system
4 wheel drive
Power source
Power source Kubota V2403 65hp diesel – Tier 4 Final Stage V
12V DC
24,800 lbs
Specifications subject to change without notice. The equipment hereunder have been subject to limited testing, and any performance specifications and representations are the result of limited testing. Photos and diagrams are shown for illustrative purposes only. Snorkel makes no warranty, representation, or guarantee regarding the information contained herein or the suitability of its equipment for any particular purpose. It is the Buyer’s responsibility to independently determine suitability of any equipment or parts, and to test and verify the same. Refer to appropriate Snorkel operator’s manual for detailed instructions on the proper use and maintenance.
Last Updated
  • Snorkel GuardTM secondary guarding system
  • 5 ft 6 in, 135° jib
  • Oscillating axle (8” of oscillation)
  • Hydraulic oil cooler
  • Hydraulic platform rotation
  • 4-track drive
  • All proportional controls
  • Swing-out engine tray
  • Motion alarm
  • Horn
  • Hour meter & on-board diagnostics display
  • Power line to platform
  • Tilt alarm & cut-out
  • DC emergency operation
  • Tri-entry platform
  • Flashing amber strobe
  • Platform overload system
  • 2-year parts & labor, 5-year structural warranty
Environmental hydraulic oil
Airline to platform
AC generator 208V/7.5kW
AC generator 110V/220V 2kW
Tool tray
Special paint colors
11ft. platforms (replaces standard 8ft. platform)
11ft. platforms (in addition to standard 8ft. platform)
